Hybrid Microinverter

MH2000/2000 DE/1000/1000 DE

The Hybrid Microinverter is a key component of the plug & play hybrid storage system or micro hybrid storage system, it has on-grid, off-grid and energy storage function.

Hybrid Microinverter, which is connected between solar modules and battery, can charge excess electrical energy into the battery and release it when needed.

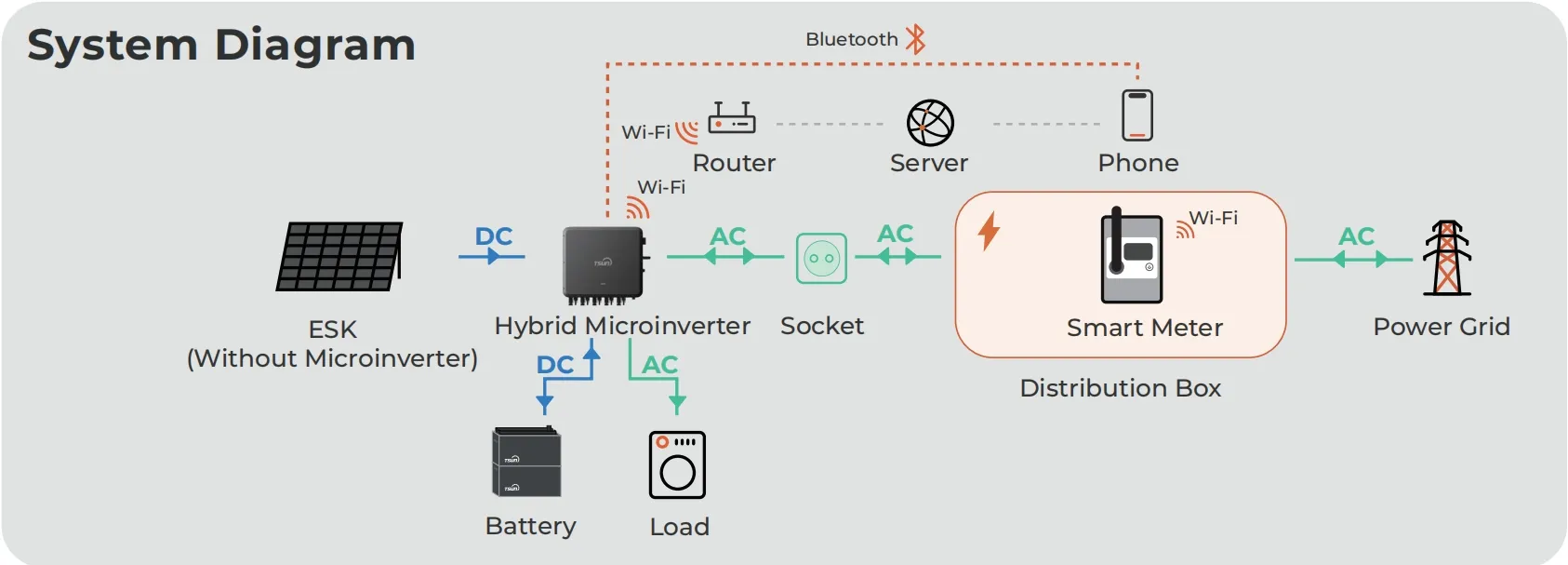

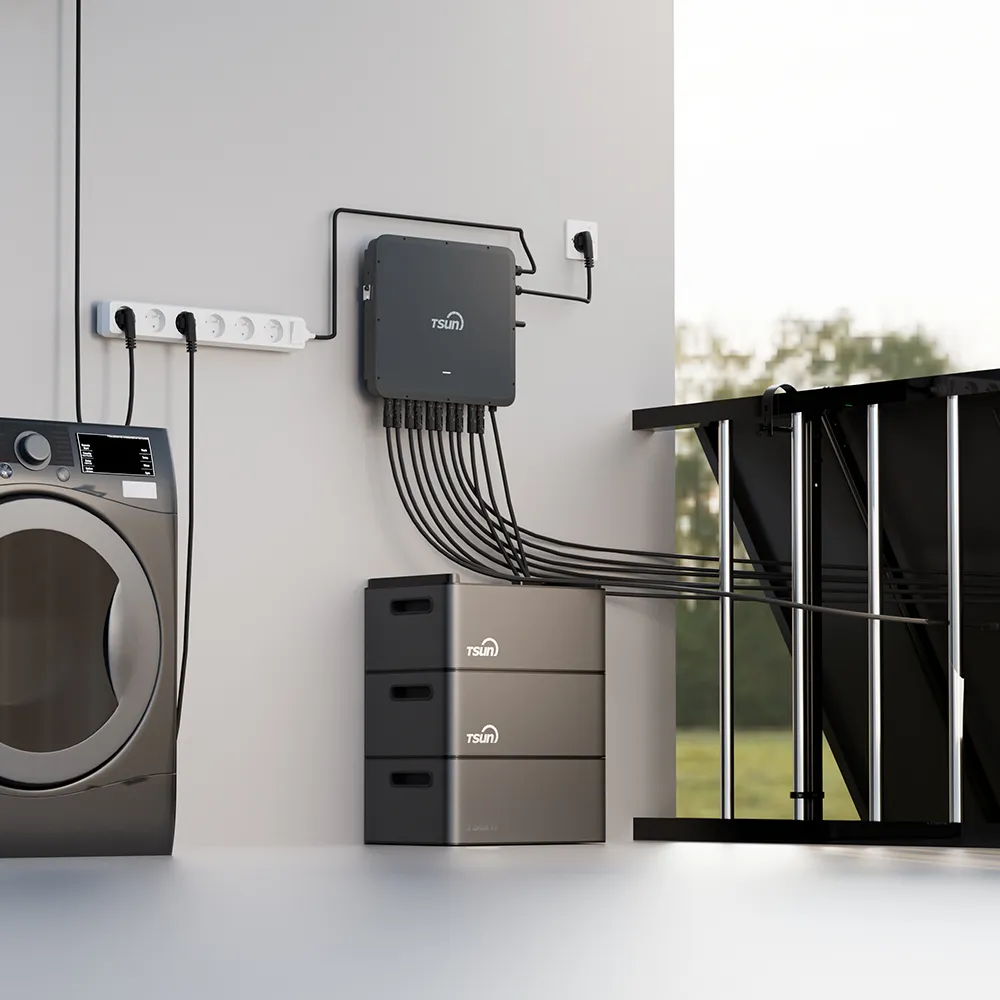

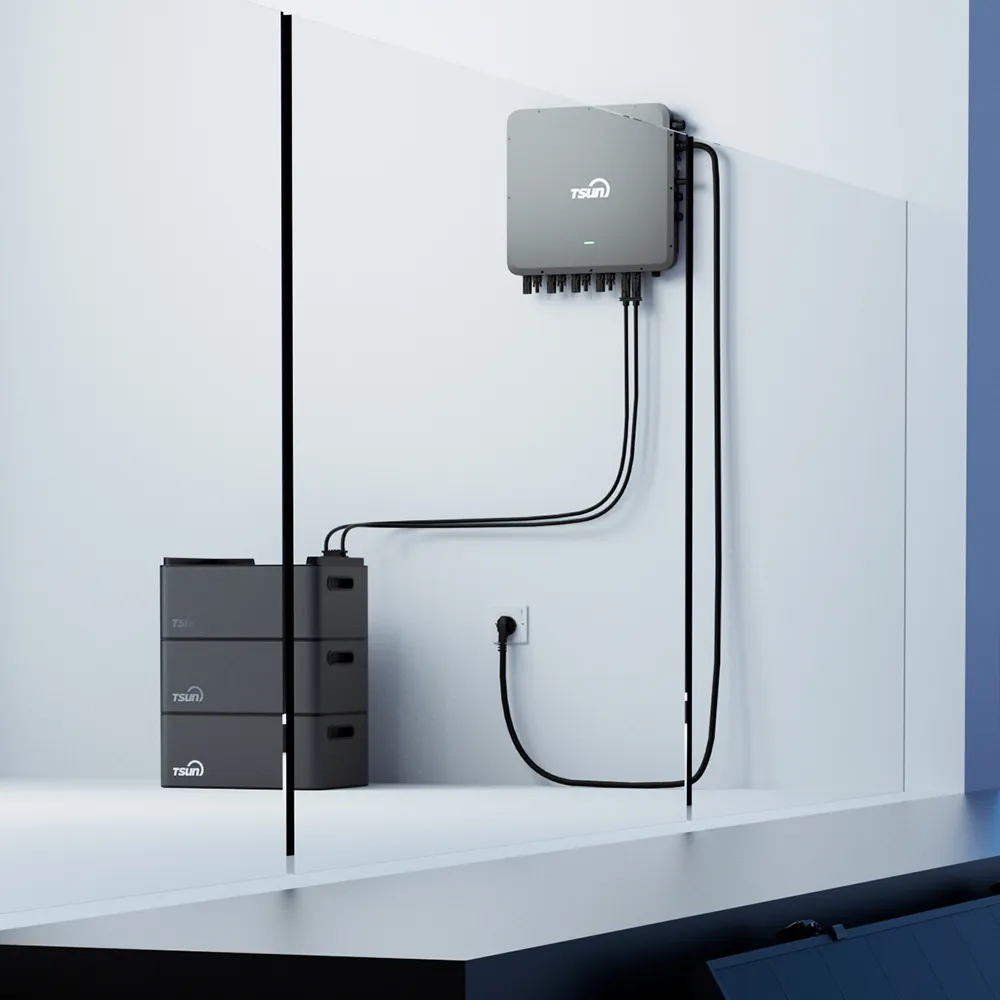

This solution, Solar Module + Hybrid Microinverter+ Battery, is typically used as a hybrid storage solution for small household, conventional balconies, courtyards, family carports, and other micro systems.

DATASHEET

Products Micro Storage System Hybrid Microinverter Hybrid Microinverter

Key Features

Efficiency	Safety	Intelligence	Flexibility

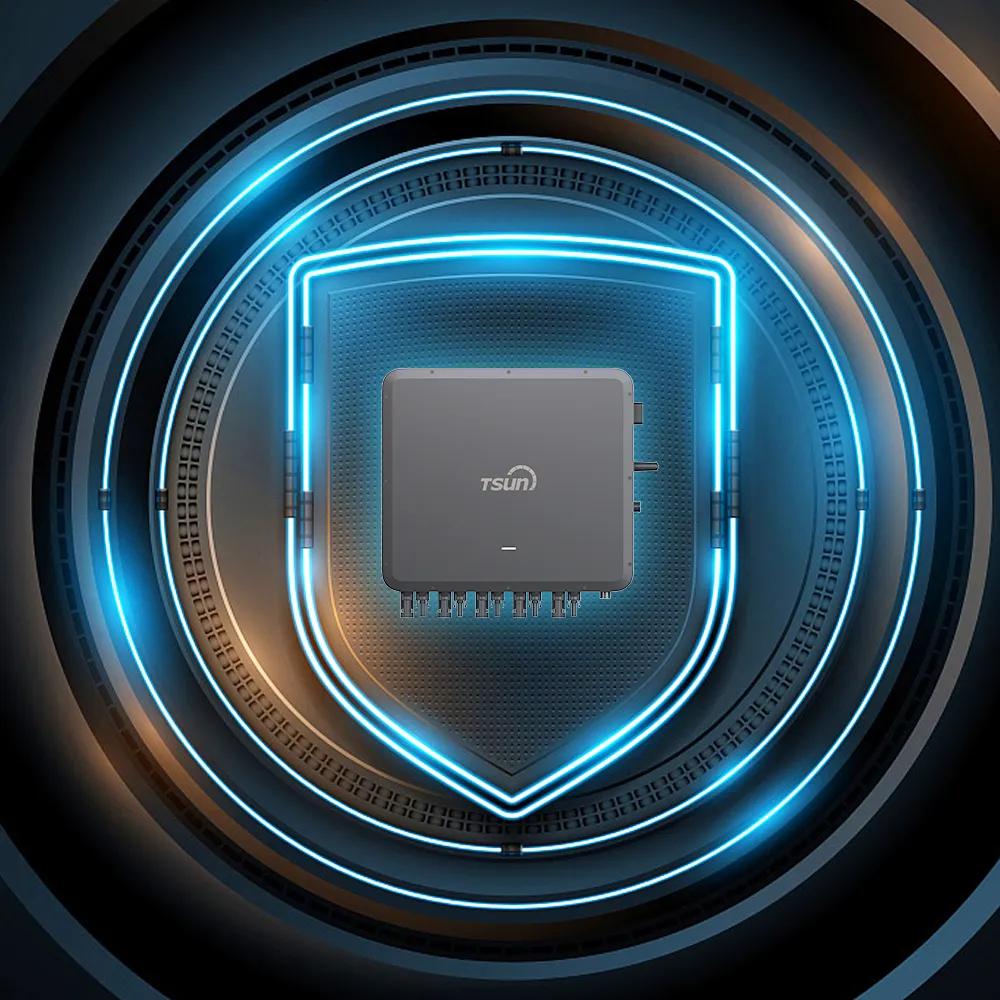

Enhanced power generation with multi-MPPT technology	Advanced protection for long-lasting operation	Convenient management via remote monitoring	Wide compatibility and easy installation

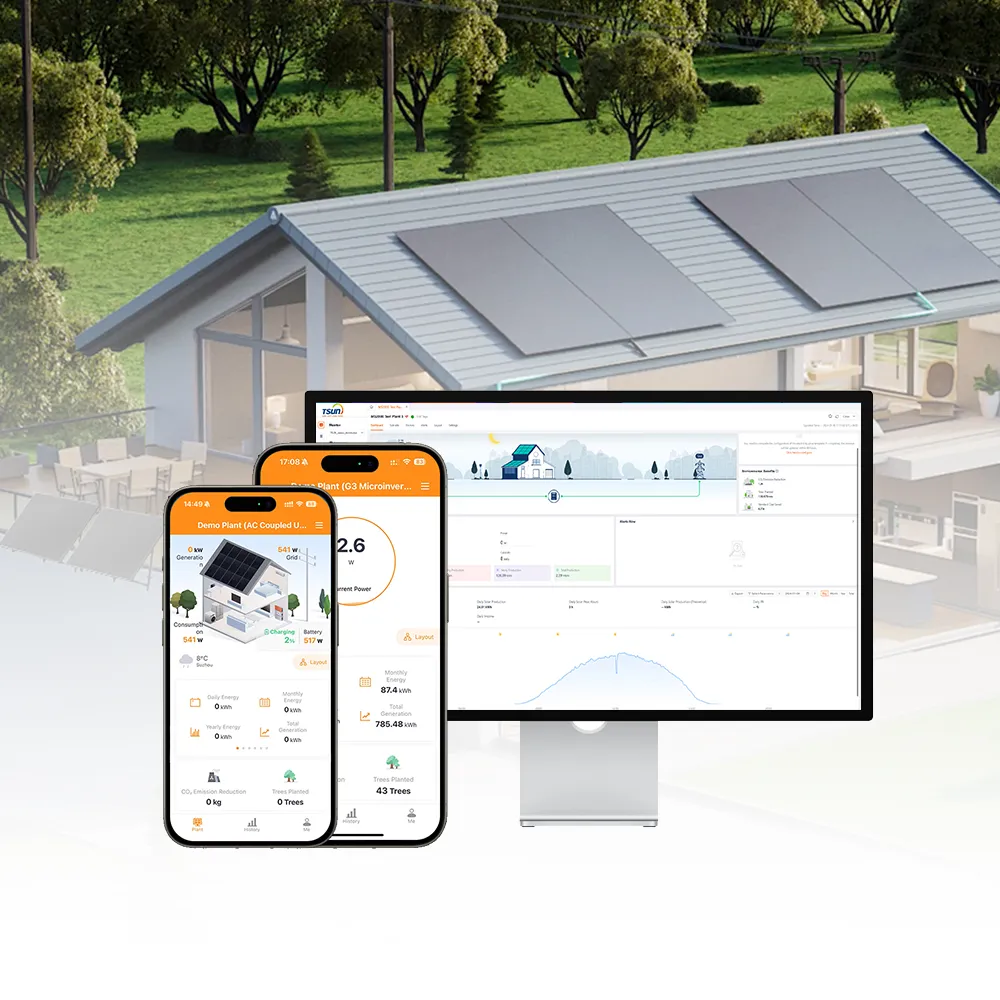

• Multi-MPPT technology optimizes panel output for better performance in various conditions • 60V low-voltage operation ensures stability • 2000W charging and discharging power maximizes electricity generation	• IP67 dust and water resistance rating • Stable operation in -40°C to +65°C temperature range • Advanced protection against electrical failures • 25-year design lifespan • 150% overload capacity for 2 seconds	• Remote monitoring and management via user-friendly interface • <10ms grid-connected/off-grid mode switching • Backup power, anti-backflow control, and scheduled charging functions • Optional Zero Export feature for precise power flow control • Battery charging from both solar module and grid	• Plug-and-play design for easy installation • Suitable for balcony solar, home energy storage, and zero-export setups • Compatible with multiple battery types • 60V low-voltage and 2000W power handling for diverse projects • Wide temperature adaptability and IP67 rating for various environments

Operation Modes

Self-Consumption Mode	Peak-Shaving and Valley-Filling Mode	Off-Grid Backup Power Mode
Solar power is prioritized for local use, with excess electricity stored in batteries. This reduces reliance on the grid and lowers electricity costs.	Leveraging peak-valley electricity price differences, batteries discharge during peak hours and charge during off-peak hours. This optimizes electricity costs and alleviates grid pressure.	In the event of a grid failure, the system automatically switches to battery power to ensure critical loads operate uninterrupted—ideal for emergency scenarios.

Uninterruptible Power Supply (UPS) Mode	Intelligent Scheduling Mode
When the grid fails, the system switches to battery power in milliseconds to prevent equipment downtime (e.g., medical devices, servers). It automatically reverts to grid power and recharges once the grid is restored.	Through communication interfaces, the system integrates with intelligent systems to automatically adjust the power supply ratio of solar, grid, and battery based on electricity prices and load demands. It also participates in grid demand-side management.

Resource

Technical Data

Item	TSOL-MH2000	TSOL-MH2000DE	TSOL-MH1000	TSOL-MH1000DE
Recommended Module Power [W]	300~700+	300~700+	300~700+	300~700+
Quantity of PV Module	1 to 4	1 to 4	1 to 2	1 to 2
Start up Voltage @Rated condition [V]	22	22	22	22
Operating Voltage Range per Input [V]	16~60	16~60	16~60	16~60
Max. Input Voltage per Input [V]	60	60	60	60
Short Circuit Current per Input [A]	25	25	25	25
Max. Input Current per Input [A]	18	18	18	18
Quantity of MPPTs	4	4	2	2
Quantity of DC Inputs [MC4]	4	4	2	2

Battery (DC)
Battery Capacity (Wh)	2048	2048	2048	2048
Batter Type	LiFePO4	LiFePO4	LiFePO4	LiFePO4
Nominal Voltage (V)	51.2	51.2	51.2	51.2
Operating Voltage Range (V)	43.2 - 58.4	43.2 - 58.4	43.2 - 58.4	43.2 - 58.4
Max. Discharge Power (W)	2000	2000	1000	1000
Max. Discharge Current (A)	45	45	25	25
Max. Charge Power (W)	2000	2000	1000	1000
Max. Charge Current (A)	40	40	20	20

AC Port (On-grid)
Max AC Output Power (W)	2000	800	1000	800
Max. AC Output Current (A)	10	8	5	4
Max. AC Input Power (W)	2000	2000	1000	1000
Max. AC Input Current (A)	11	11	5.5	5.5
Max. AC Input Current (A)	220/230/240, L/N/PE
Nominal AC Frequency (Hz)	50/60
Power Factor	>0.99 default 0.8 leading … 0.8 lagging
THDI	≤3%@100% Load

AC Port (Off-grid)
Max. AC Output Power (W)	2000	2000	1000	1000
Max. AC Output Current (A)	10	10	5	5
Nominal AC Voltage (V)	220/230/240, L/N/PE
Nominal AC Frequency (Hz)	50/60
Switch Time [ms]	< 10
Peak Output Apparent Power [VA]	150% 2s

Efficiency
Peak Inverer Efciency	97.0%
EU Efficiency	96.7%
MPPT Efficiency	99.9%
Batter Charge/Discharge Efficiency	95%/95%

Mechanical Data
Dimensions (W×H×D mm)	360 * 320 *51
Weight [kg]	8

General Data
Communication	WiFi (Bluetooth) + 2 * RS485
Ingress Protecction	IP67
Cooling	Natural Convection
Operating Ambient Temperature Range	-40℃ ~ +65 ℃
Relative Humidity	0-95%, Non condensing
Max. Operating Altitude Without Derating [m]	2000
