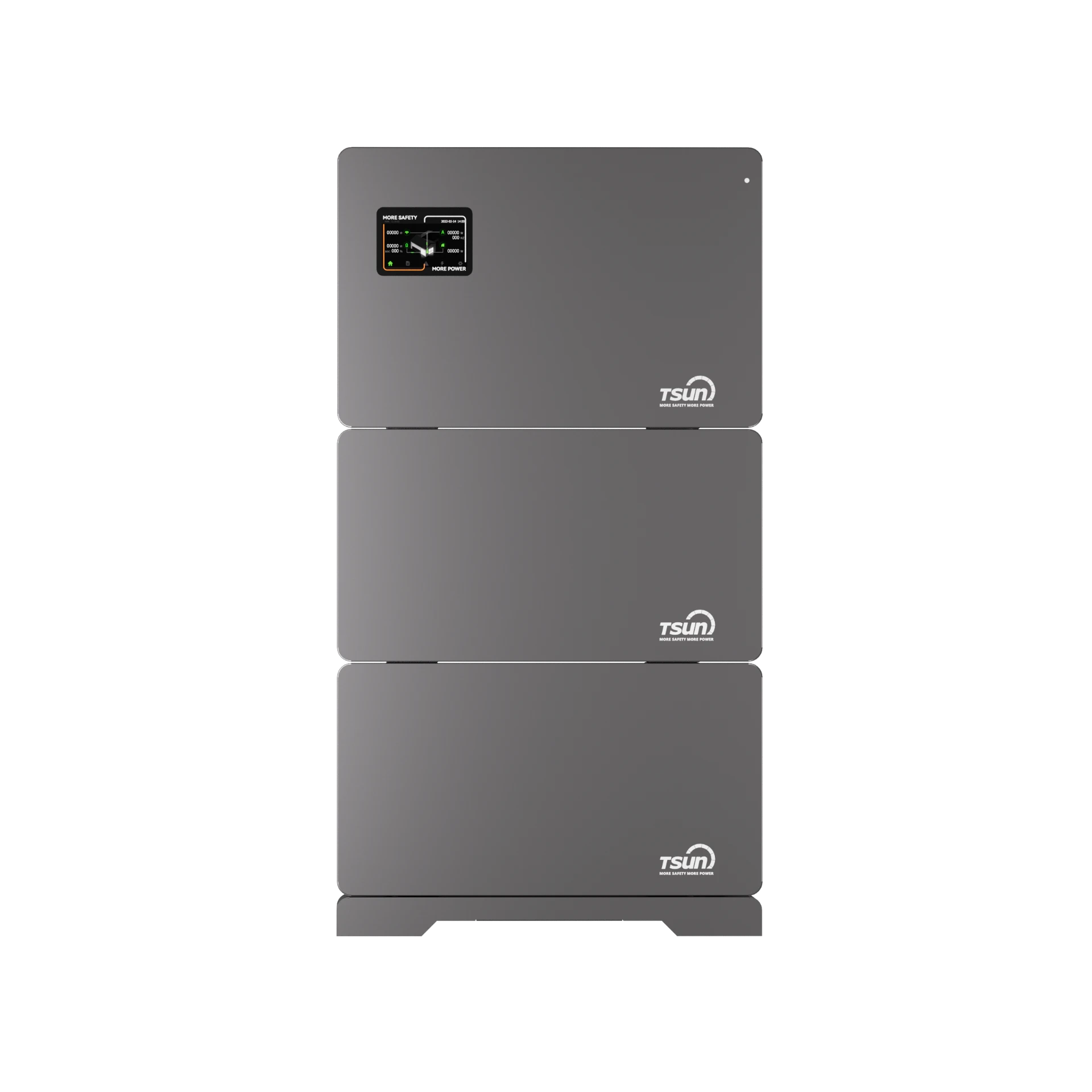

AC Coupled Storage Unit

ACU3.0/3.6/4.0/4.6/5.0/6.0K | 5KWh-20KWh

The ACU is a key component of the Energy Storage System, integrating both an energy storage inverter and a battery pack. The AC Coupled Unit stores electricity in its battery and converts it into AC power according to different work modes.

DATASHEET

Products Residential Storage System AC Coupled Storage Unit

Specs

Item	TSOL-ACU3.0K	TSOL-ACU3.6K	TSOL-ACU4.0K	TSOL-ACU4.6K	TSOL-ACU5.0K	TSOL-ACU6.0K
Battery Type	LiFePO4
Battery Capacity per Kit [kWh]	5.12
Battery Voltage per Kit [V]	51.2
Max. Charging Power [W]	3000	3600	4000	4600	5000	6000
Max. Charging/ Discharging Current [A]	60/60	72/72	80/80	92/92	100/100	120/120
Rated Output Power[W]	3000	3600	4400	4600	5500	6000
Operating Temperature Range	-30 ~ +60 °C (Derating of over 45°C Ambient Temperature)
Dimensions [W×H×D mm]	650 x 428 x 207 (Inverter) 650 x 355 x 207 (Battery)
Weight [kg]	20 (Inverter)/50 (Battery)

Frequently Asked Questions

Can the TSUN AC Coupled Unit improve energy self-sufficiency?

A :

Yes, it stores excess solar energy during the day and provides power at night or during outages, reducing reliance on the grid and increasing energy independence.
How easy is it to add the TSUN AC Coupled Unit to my existing solar system?

A :

The AC Coupled Unit is designed for seamless retrofitting into existing solar setups, allowing you to upgrade without complex wiring or equipment changes.
How does the monitoring system work for the TSUN AC Coupled Unit?

A :

It features built-in WiFi and Bluetooth, enabling real-time monitoring through a mobile app or web interface, allowing you to track battery health and energy usage remotely.
