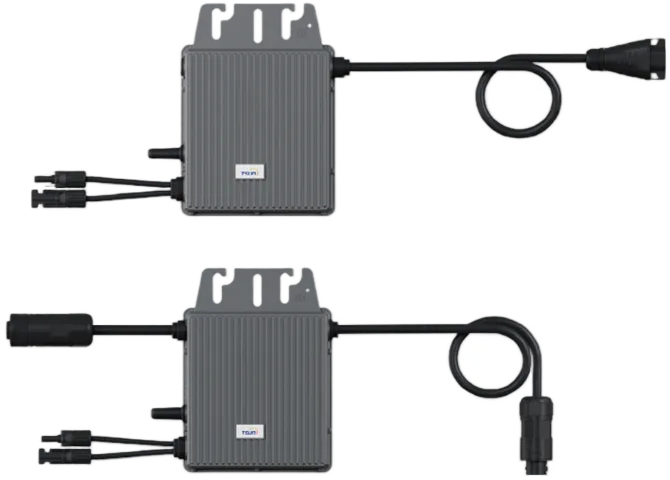

6-in-1 Microinverter: the daisy-chain leap everyone’s talking about

If you’ve been watching PV balance-of-system costs the past two years, you’ll know why installers keep asking about the 6-in-1 Microinverter. Daisy-chain topology sounds simple—hand‑in‑hand linking to cut trunk cabling—yet in larger rooftops it’s genuinely impactful. In fact, I’ve seen crews shave hours off rooftop wiring on day one. Fewer connectors, fewer headaches.

What’s trending (and why it matters)

Module-level power electronics are going mainstream in C&I. Reasons? Rapid-shutdown rules, shade tolerance, and granular monitoring. Daisy-chain microinverters push that further by reducing home-run wiring and giving planners more layout flexibility on irregular roofs. To be honest, it’s the rare case of “less copper, more control.”

Indicative technical specs

Below is a snapshot spec for a 6-in-1 Microinverter used in medium-to-large rooftops. Exact values vary by grid profile and region, so treat this as a planning guide.

Materials, methods, and reliability

• Core materials: aluminum die-cast heat spreader, silicone/epoxy potting, UV-stable gaskets, conformal-coated PCB.
• Manufacturing flow: SMT assembly → automated optical inspection → power stage calibration → full potting → burn‑in (48–72 h) → functional test.
• Testing standards: safety per IEC 62109-1/-2; grid conformance per IEEE 1547/UL 1741; EMC per IEC 61000 series; thermal cycling -40~+85°C per IEC 60068; salt-mist per IEC 60068-2-52.
• Service life: designed ≈ 25 years; field warranty commonly 10–25 years depending on region.

Where it fits

Residential clusters, C&I rooftops (logistics centers, outlets), canopy carports, agrivoltaics with mixed shade. Daisy-chain topology keeps layouts tidy across long roof runs. Many customers say the commissioning feels faster—less cable wrangling, more kWh.

Why choose a 6-in-1 Microinverter?

• Safety: module-level AC means low DC on the roof; aligns with rapid-shutdown rules.
• Scalability: hand‑in‑hand linking eases expansion later.
• O&M: panel-by-panel insight; pinpoint underperformance or soiling.
• Yield: per‑module MPPT boosts output under partial shade; I’ve seen 3–8% uplift vs. centralized in messy shading.

Vendor landscape (quick take)

Customization and integration

Options typically include connector type (MC4/H4), cable length, gateway type, grid codes (IEEE 1547, EN 50549), and monitoring APIs. For EPCs, factory-preset reactive power curves can save site time.

Field notes and a quick case

Suzhou logistics rooftop, 120 kW: swapping to 6-in-1 Microinverter strings cut AC trunk by ≈28% and boosted yield 4–6% vs. prior string design under checkerboard shading (three-month A/B). Crew feedback? “Faster commissioning, cleaner cable trays.”

Certifications & compliance: Safety per IEC 62109; grid per IEEE 1547 and UL 1741; EMC per IEC 61000; rapid-shutdown alignment where applicable. Always verify local utility rules.

Origin: No. 55 Aigehao Road, Weitang Town, Xiangcheng District, Suzhou City, Jiangsu Province, China.

References

1. IEC 62109-1/-2, Safety of power converters for use in photovoltaic systems. IEC Webstore.
2. IEEE 1547-2018, Interconnection and Interoperability of Distributed Energy Resources. IEEE Standards.
3. UL 1741 SB, Inverters/Converters/Controllers for Use in Independent Power Systems. UL Standards.
4. NREL, Inverter Functions and Grid Support Capabilities (technical briefs, 2022–2024).
