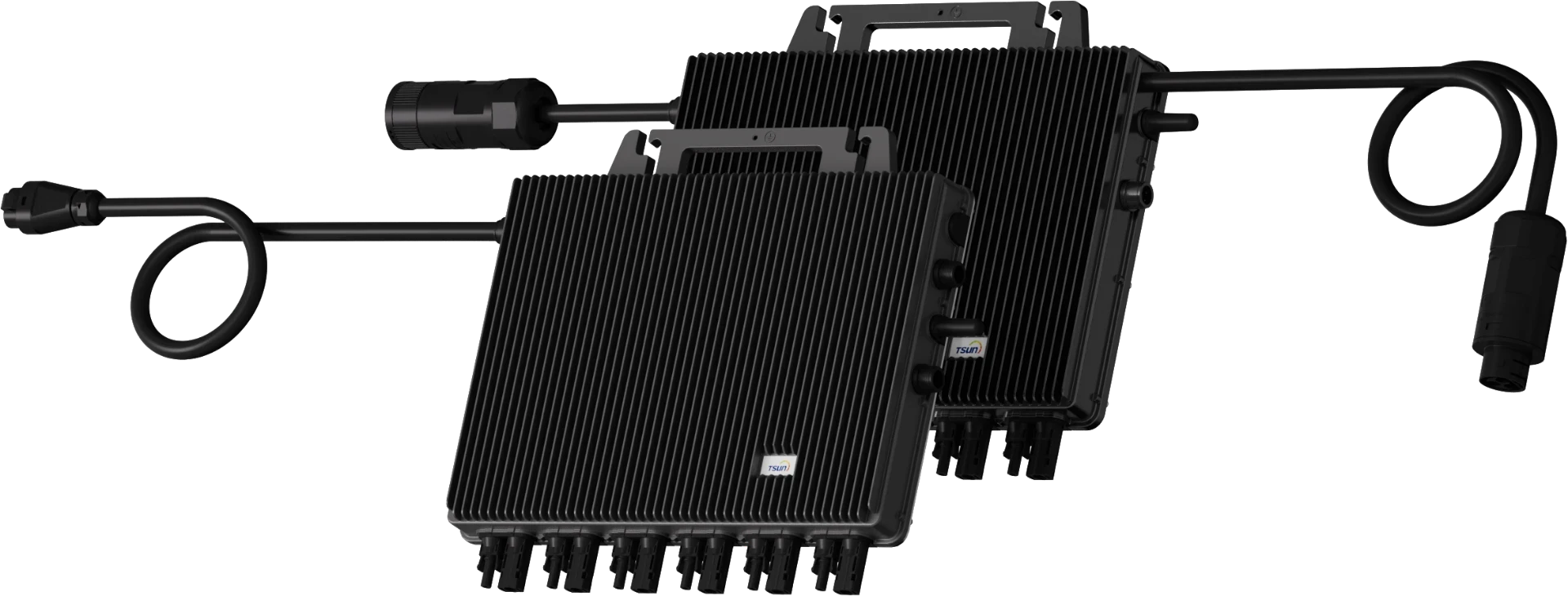

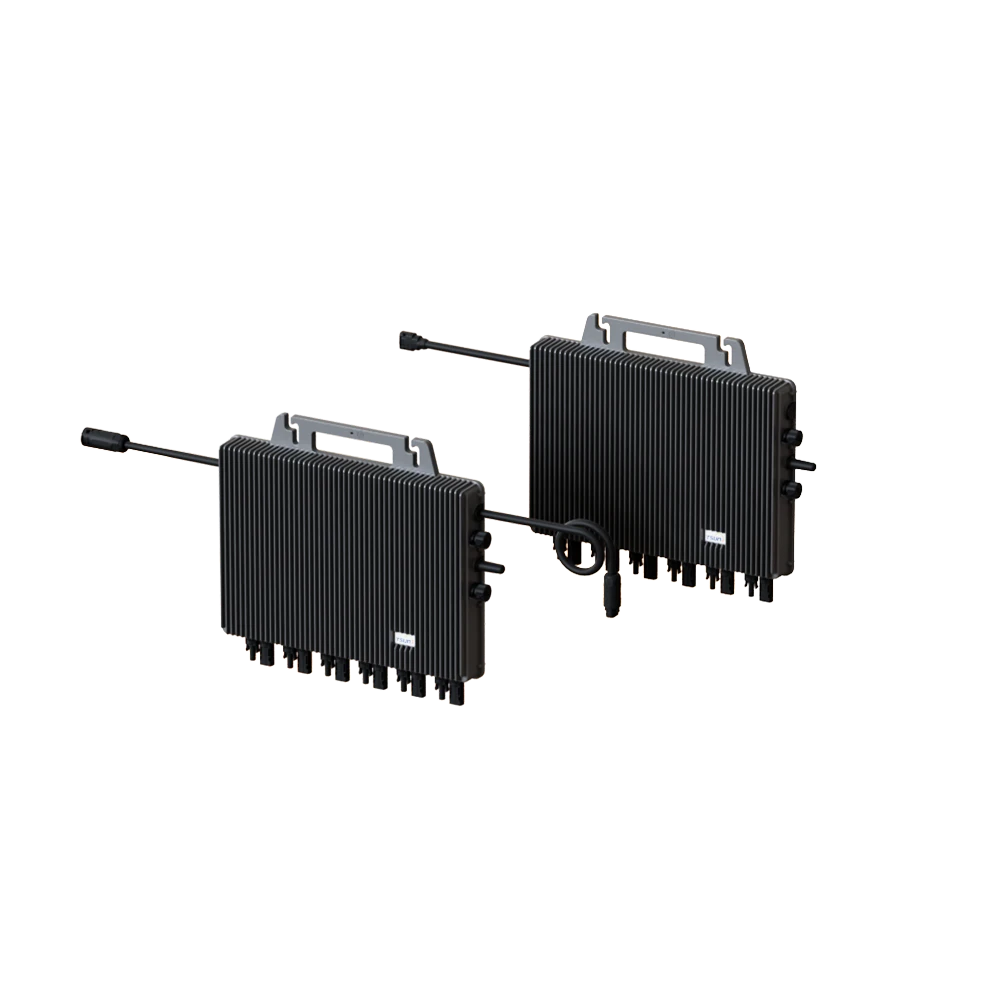

GEN3 Microinverter 6-in-1 (Three-phase)

2400W-3300W | Three-phase
TSUN GEN3 Microinverter 6-in-1(Three-phase) is a high-efficiency microinverter that uses a hand-in-hand series connection and is designed for larger-scale solar systems. Through the 3 different connection methods, this microinverter can effectively reduce wiring complexity and improve system flexibility and scalability.
1in1zhutu1
banner ProductsMicroinverterGEN3 MicroinverterGEN3 Microinverter 6-in-1 (Three-phase)

details_bg

No Risk of Fire, Simplify the System Design

60V Max. Input DC Voltage

Low DC voltage less than 60V per input, no risk of arc which usually leads to fire.

In the meantime for system with microinverter, there is no need to have the DC side of protection devices such as AFCI, Arc Detector, DC switch and etc.

Microinverter comply neuturally with NEC2020 fire safety regulation without any additional accessories.





Comes from The Widest Power Family

2400 W–3300 W Model Range

Choose from five robust power models, ranging from 2400W to 3300W.

Whether powering a commercial complex or a large residential community,

the TSUN GEN3 Microinverter 6-in-1 (Three-phase) delivers optimal power output, ensuring efficient energy conversion and cost savings.





Higher Efficiency, Higher Return

TSUN's big power microinverter is not only lowering the system initial cost,

but in the meantime its higher efficiency up to 97% also brings much more electricity generated,

    offers much higher ROI than traditional solutions.





6 Channels. Zero Compromise.

Module Level 6-Way MPPT Optimization

TSUN’s 6‑way MPPT technology in its 6-in-1 microinverter continuously adjusts each panel’s output

based on real‑time conditions, extracting every watt available.

Whether panels differ in tilt, shade, or irradiance, your system stays efficient and balanced.





Integrated WIFI with Higher Temprature Resistance

Instead of using the industrial level WIFI chip with ambient temperature of 85℃, TSUN innovatively uses the car level WIFI chip with ambient temperature of 105℃.

One upgrade of WIFI chip, but it gives TSUN microinverter much more advantage during extreme installation environments.

TSUN data connection will remain stable and strong as long as it is within the signal range of local WIFI router.





Flexible Monitoring Solutions

Not only with standard integrated WIFI monitoring, TSUN can also offer different monitoring solutions eg Bluetooth,

RS485 or 4G. TSUN also offers API service for strategic partner with centralized HEMS.







Choose Your Suitable Microinverter

GEN3 Microinverter 6-in-1 (Three-phase)

Balcony

Satisfied plug & play installation

GEN3 Microinverter 6-in-1 (Three-phase)

Trunk Cable

Flexible installation

GEN3 Microinverter 6-in-1 (Three-phase)

Daisy Chain

Hand-in-hand installation

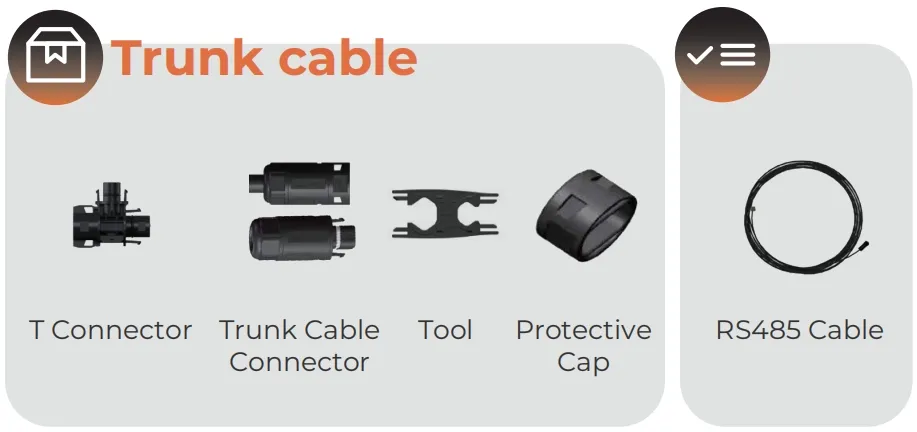

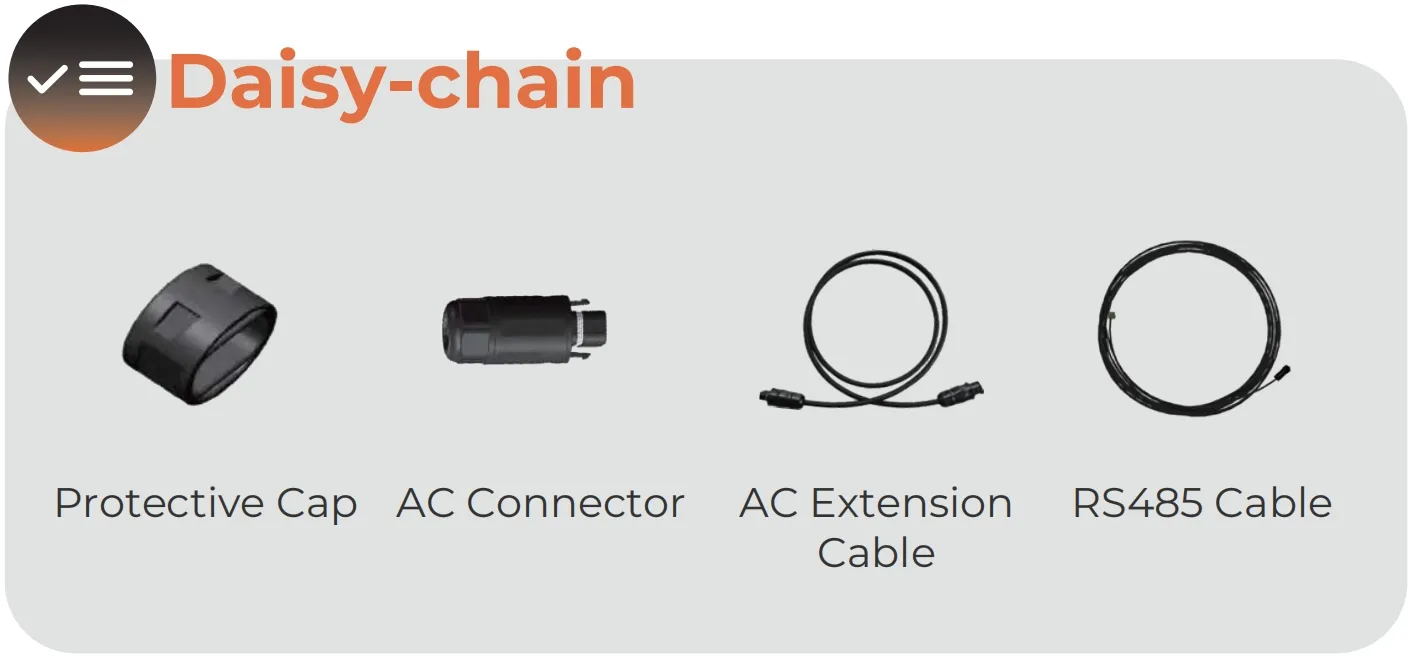

What's in the box

* GEN3 Microinverter 6-in-1 (Three-phase) refers to standard accessories, GEN3 Microinverter 6-in-1 (Three-phase) refers to optional accessories.

GEN3 Microinverter 6-in-1 (Three-phase)

GEN3 Microinverter 6-in-1 (Three-phase)



Specs

Item TSOL-MX2400D-T TSOL-MX2500D-T TSOL-MX2700D-T TSOL-MX3000D-T TSOL-MX3300D-T
Recommended Module Power [W]

400 ~ 700+

MPPT Voltage Range per Input (V)

16 ~ 60

Max. Input Voltage per Input (V)

60

Max. Input Current per Input (A)

18

Short-current (A)

25
Nominal Continous Output Power [W] 2400 2500 2700 3000 3300

Quantity of MPPT

6   6
Dimensions [WxHxD mm]

380 x 313 x 49

Weight (kg)(Daisy-chain)

8.2

Weight (kg)(Trunk cable/Balcony)

7.5
