AC Coupled Storage Unit: Smart Energy Backup for Solar Homes

Table of contents

AC Coupled Storage Unit: Smart Energy Backup for Solar Homes

Release time 2025 - 07 - 22

TSUNESS Co., Ltd. - Pioneering Energy Storage Technology

Headquartered at: No. 55 Aigehao Road, Weitang Town, Xiangcheng District, Suzhou City, Jiangsu Province, China

Contact: +86 512 66186028 | sales@tsun-ess.com

www.tsun-ess.com | AC Coupled Storage Unit Product Page

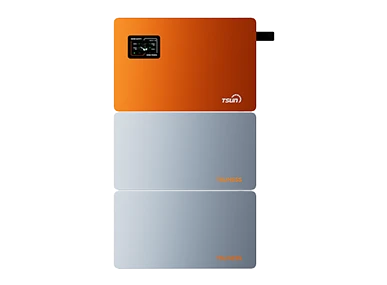

AC Coupled Storage Unit: Smart Energy Backup for Solar Homes

The Powerhouse of Modern Energy Systems

The AC Coupled Storage Unit (ACU) represents a technological breakthrough in energy management solutions. As a key component of modern Energy Storage Systems (ESS), AC Coupled Storage Units integrate both an energy storage inverter and a battery pack to store electricity efficiently and convert it into AC power according to diverse operational requirements. These systems are becoming increasingly vital in both residential and commercial applications, providing energy independence and grid stabilization capabilities.

Technical Specifications & Industry Parameters

Parameter	Residential Units	Commercial Units	Industrial Units
Storage Capacity (kWh)	5 - 20	20 - 100	100 - 500+
Round-Trip Efficiency	≥90%	≥92%	≥94%
Voltage Range (V AC)	90-265	380-480	480-690
Operating Temperature	-10°C to 50°C	-10°C to 50°C	-20°C to 60°C
Battery Chemistry	LFP (LiFePO4)	LFP/NMC	LFP/NMC
Communication Protocols	RS485, CAN	Modbus, CAN	Modbus TCP, IEC 61850
Scalability	Single-unit	Up to 5 units parallel	Multi-cluster configuration
Certification Standards	IEC 62619, UL 9540	IEC 62619, UL 9540A	IEC 62933, IEEE 1547

Industry Applications & Deployment Scenarios

Residential Energy Management

AC Coupled Storage Units enable homeowners to maximize solar self-consumption, reduce grid dependency, and provide backup power during outages. Modern systems offer smart energy management with load-shifting capabilities.

Commercial Peak Shaving

Businesses leverage AC Coupled Storage technology to reduce peak demand charges by up to 40%. By storing energy during off-peak hours and deploying during high-tariff periods, commercial users achieve substantial cost savings.

Grid Stabilization Services

Utility-scale implementations of AC Coupled Storage Units provide frequency regulation and voltage support to the electrical grid, addressing intermittency challenges in renewable energy integration.

Microgrid Implementations

Islandable microgrids with AC Coupled systems deliver energy resilience for critical facilities such as hospitals, data centers, and military installations during grid disruptions.

Market Evolution & Technological Advancements

According to the International Energy Agency (IEA), the global energy storage market is projected to expand fifteen-fold by 2030, with AC Coupled Storage Units accounting for over 65% of behind-the-meter installations. This growth is fueled by several key trends:

Modularity and Stacking Capabilities: Modern AC Coupled Storage Units feature plug-and-play scalability allowing capacity expansion without system replacement.
AI-Powered Energy Management: Next-generation controllers utilize predictive algorithms that optimize charging/discharging cycles based on weather forecasts, usage patterns, and tariff structures.
Hybrid Inverter Architecture: Latest-generation systems seamlessly integrate with solar PV, generators, and grid connections through sophisticated power electronics.
Enhanced Safety Protocols: Advanced Battery Management Systems (BMS) implement multi-layer protection including thermal runaway prevention and fault detection.

A recent study published in the Journal of Energy Storage highlights the technological leap in round-trip efficiency for modern AC Coupled Storage Units: "Contemporary designs have achieved 94.5% round-trip efficiency compared to 88% in legacy systems, fundamentally changing the economic viability equation for distributed energy storage." Source: Journal of Energy Storage

Technical FAQ: AC Coupled Storage Systems

What battery chemistry is optimal for AC Coupled Storage Units?

Lithium Iron Phosphate (LFP) has become the dominant chemistry for residential and commercial AC Coupled Storage Units due to its superior thermal stability (higher thermal runaway threshold at 270°C vs. NMC's 150-200°C), extended cycle life (6,000+ cycles at 80% DoD), and cobalt-free composition that reduces supply chain risks.

What certifications should a compliant AC Coupled system have?

Essential certifications include UL 9540 for energy storage systems, IEC 62619 for lithium batteries, IEEE 1547 for grid interconnection, and NFPA 855 for fire safety. Region-specific certifications like VDE-AR-E 2510-50 in Germany and CEC approval in Australia are critical for local compliance.

How do AC Coupled systems achieve grid synchronization?

AC Coupled Storage Units utilize phase-locked loop (PLL) technology to synchronize with grid frequency (50/60 Hz) and voltage. Advanced implementations feature adaptive synchronization algorithms that monitor grid impedance and adjust synchronization parameters dynamically according to IEEE 1547-2018 standards.

What thermal management approaches are utilized?

Commercial-grade AC Coupled Storage Units implement active cooling systems with refrigerant circuits (COP up to 3.0) that maintain battery temperatures within the optimal 15-35°C range. Redundant NTC temperature sensors provide 3-zone monitoring per battery module with 0.5°C accuracy.

How do installation requirements differ from DC coupled systems?

Unlike DC coupled storage, AC Coupled Storage Units connect on the AC side of the solar inverter, allowing retrofit installations without modifying existing PV systems. This requires separate AC disconnects and proper coordination between protection devices per NEC 706 regulations.

What communications protocols enable system integration?

Modern AC Coupled systems support Modbus TCP/IP, SunSpec Modbus, CAN 2.0B, and IEEE 2030.5 (Smart Energy Profile 2.0). Leading systems now incorporate RESTful API interfaces for cloud integration with EMS platforms.

What are the key differences between single-phase and three-phase systems?

Residential AC Coupled Storage Units typically use single-phase connection (230VAC), while commercial/industrial systems operate with three-phase configurations (400VAC). Three-phase systems feature active phase balancing and deliver 3× power capacity with superior harmonic distortion performance (

Industry Recognition & Technical Validation

The Energy Storage Association recently emphasized the transformative role of modern AC Coupled Storage Units: "Today's advanced AC coupled solutions have evolved into sophisticated grid-edge resources capable of providing at least 12 distinct grid services - from frequency regulation to voltage support - fundamentally changing the value proposition of distributed storage." Source: Energy Storage Association

Researchers at the National Renewable Energy Laboratory (NREL) quantified the system-level benefits: "When properly integrated with building energy management systems, modern AC Coupled Storage Units can reduce peak demand charges by 18-43% in commercial applications, while providing an annual reduction of 72-86% in backup generator run-time for critical facilities." Source: NREL Technical Report

The International Electrotechnical Commission (IEC) recently updated its standards framework to address the growing capabilities: "The new IEC TS 62933-5-2 standard specifically addresses enhanced functionalities in AC Coupled Storage Units including grid-forming capabilities, synthetic inertia provision, and adaptive fault ride-through characteristics." Source: IEC Standards

The Future of Energy Storage

As global energy systems transition toward renewable-based architectures, AC Coupled Storage Units emerge as indispensable components enabling this transformation. With their advanced power electronics, intelligent energy management algorithms, and modular design principles, these systems will play an increasingly critical role in building resilient, efficient, and sustainable energy ecosystems.

To explore TSUNESS's innovative AC Coupled Storage Unit solutions designed for residential, commercial and industrial applications, visit our product page or contact our engineering team to discuss your specific energy storage requirements.
