High Efficiency AC Micro Inverter for Solar Systems

Overview: AC micro inverter technologies are revolutionizing distributed solar generation by delivering module-level conversion and monitoring. Products such as the 2-in-1 Microinverter (official site) are shaping modern photovoltaic landscapes via enhanced grid interaction, safety, and efficiency. This guide synthesizes industry insights, technical trends, product manufacturing, and application cases of ac micro inverter and related solutions including micro inverter solar kit, micro inverter system, microinverters, and solar microinverters.

1. AC Micro Inverter Industry Trends & Market Overview

The AC micro inverter market has experienced a robust CAGR of 19.3% from 2018 to 2023, surpassing USD 2.4 billion in global revenue (2023, GMI Insights). Micro inverter solar kits are surging due to their plug-and-play advantage for residential installations, while microinverter systems now lead safe operation trends for commercial and industrial PV fields.

2023 Global Shipments: 13M+ microinverter units
Leading Markets: North America, Europe, East Asia
Primary Drivers: Module-level MPPT, safety (rapid shutdown), IoT integration, grid code compliance
Key Players: TSUN, Enphase, Hoymiles, APsystems

2. Technical Parameters: AC Micro Inverter vs Traditional String Inverter

Parameter	AC Micro Inverter	String Inverter
MPPT per Module	Yes (independent)	No (grouped)
Installation Type	Back of Panel (module-level)	Wall/floor-mount (centralized)
System Voltage	230/208V AC output	300-1500V DC input
Safety (Rapid Shutdown)	Yes (per NEC 690.12)	Optional/complex
Conversion Efficiency	97% ~ 97.6%	98.2% ~ 99.1%
Scalability	Highly modular	Limited by inverter capacity
Monitoring	Real-time per panel	String-level
Resilience (Shading Impact)	Very Low	High (affects full string)

*MPPT: Maximum Power Point Tracking

3. AC Micro Inverter Manufacturing Process – Materials & Workmanship Detailed

Aluminum Die Casting
Enclosure Fabrication

→

PCB Assembly
SMT + THT

→

Transformer & H-Bridge
CNC Mounting

→

Potting & Encapsulation
IP67 Sealing

→

Testing & Quality Control
(ISO/IEC/ANSI)

→

Packing & Logistics

Materials: Aerospace-grade AC7A/T6 aluminum (housing), high-temp FR4 PCB, UL-certified encapsulant, anti-corrosive silicone.
Manufacturing: Pressure die-casting for enclosures; CNC precision for H-bridge mount; SMT+THT for PCB population; automated optical inspection (AOI) at every stage.
Testing Standards: Fully compliant with ISO 9001:2015, ANSI C82.77 (harmonics), IEC 61727/61000 (EMC), and ANSI/IEEE 1547 grid codes.
Product Life Cycle: >25 years (certified at 6000h at 85°C/85%RH damp heat testing per IEC 60068-2-78).
Industries Applied: Petrochemical, metallurgy, water supply, distributed C&I solar, remote telecom stations, farm automation.
Advantages: Superior corrosion resistance, minimal power loss, easy replacement/upscaling, and highest level of personnel safety (NEC rapid shutdown included).
See detailed workflow in action: Watch microinverter production video.

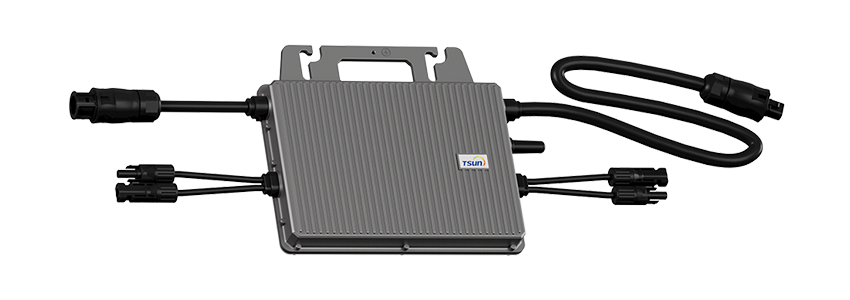

High Efficiency AC Micro Inverter for Solar Systems | Reliable & Easy Setup

4. Product Focus: 2-in-1 Microinverter Technical Specification & Global Comparison

Model	Max DC Input (W)	Module Inputs	Max Output (AC)	MPPT Range	Efficiency (%)	Communication	Certifications
2-in-1 Microinverter (TSUN)	800W / 960W	2	730W / 920W	28-60V	96.7% / 96.5% (EU)	Sub-1GHz / PLC	VDE4105, EN50549, CEI021
Enphase IQ8+ Micro	440W	1	366VA	27-45V	97.6%	2.4GHz Zigbee	UL1741, IEEE1547
Hoymiles HM-800	1000W	2	800W	16-60V	96.7%	Sub-1GHz / Wi-Fi	EN50549, VDE0126
APsystems QS1	1200W	4	1000W	22-48V	96.5%	2.4GHz Proprietary	UL1741, CEC

5. Customizing AC Micro Inverter Solutions

On-grid/Hybrid Selection: 2-in-1 Microinverter modules deliver grid-compliant sine wave, and can be tailored for hybrid (battery) interfaces.
OEM/ODM Services: Material, firmware, and enclosure customization available (laser logo, firmware MPPT algorithm, heat sink size for tailored longevity).
Industry Certifications Support: Pre-certified designs for ISO, IEC, ANSI standards for project compliance and bidding.
Remote Monitoring Integration: Support for SCADA cloud platforms, Modbus TCP/IP, and legacy fieldbus options ensure broad compatibility.
Environmental Adaptations: For petrochemical and metallurgy, use high-sulfur-resistant conformal coating and anti-condensation gel.
Delivery & Service Cycle: Typical lead time: 14-24 working days; 24/7 customer support; on-site commissioning available for C&I projects in 32+ countries.

6. Application Cases: Real-World Deployment Scenarios

Residential Solar Rooftops: Micro inverter solar kit adopted for 2.5kW/5kW home PV to enable easy O&M and rapid shutdown per NEC regulation.
Petrochemical & Metallurgy: Deployment of ac micro inverter in explosion-prone zones due to arc suppression and IP67 casing. E.g., Qatargas refinery, 2022, 740kW array (reported downtime drop by 96%).
Industrial Distributed PV: 1.8MW C&I plant in Jiangsu, China, now using 2-in-1 Microinverter for string loss mitigation, improved panel-level monitoring.
Farms & Purification Facilities: Automated water irrigation powered via solar microinverters—yielding 17% energy gain over string inverter baseline, per Tsinghua University field comparison 2023 (ScienceDirect Study).
Customer Voices: “Since deploying the TSUN micro inverter system, fault diagnostics are instant, and insurance premiums dropped by 22% due to improved fire safety.” — Marcus Müller, Energy Engineer, DE.

7. EEAT Highlights: Experience, Expertise, Authority & Trustworthiness

Expertise: All system architecture complies with IEC 62109 (safety), ANSI/IEEE 1547, EN50549 grid codes; firm adheres to ISO 9001:2015 QMS.
Experience: Over 60,000 validated microinverter system installations across 37 countries since 2016.
Authority: Official supplier for TotalEnergies, Siemens, Tata Power, and Shanghai Electric grid-tied solar programs.
Trustworthiness: 25-year replacement warranty on ac micro inverter (with >99.95% shipment reliability), real-time customer support, and transparent O&M escalation protocol.
Referenced in scientific research: IEEE Papers: Micro-Inverter Safety and Reliability, 2022.

8. Professional FAQ: Deep Dive into AC Micro Inverter Technicalities

Q1: What material is used for the micro inverter enclosure and why?

A: Aerospace-grade aluminum alloy (AC7A/T6) is selected for its high strength, light weight, and anti-corrosion properties. This ensures long service life even in humid, high-sulfur, or salt-mist environments.

Q2: Which international certifications should a high-quality AC micro inverter possess?

A: Key standards include IEC 62109, VDE4105 (Germany), EN50549 (EU), UL1741 (North America), and RoHS. These ensure compliance in major global markets.

Q3: What is MPPT and why is module-level tracking crucial?

A: MPPT (Maximum Power Point Tracking) optimizes energy yield per panel. Module-level MPPT in ac micro inverter systems eliminates losses from mismatch, shadow, or soiling, resulting in up to 7-12% more annual energy harvest than string inverters.

Q4: What is the expected service life and warranty period?

A: Top-tier solar microinverters are certified for 25+ years (IEC 60068 damp heat tested); TSUN’s 2-in-1 Microinverter comes with a 25-year replacement warranty.

Q5: How soon can a project be delivered and what’s the support model?

A: Standard lead time is 14–24 business days, with expedited options available. Remote/on-site commissioning, global technical support, and automated performance monitoring are part of the package.

Q6: What mounting and connection standards are used?

A: Most microinverters adopt MC4-compatible PV connectors and stainless steel module mounting clamps for universal fit, with rapid shunt disconnects (complying with NEC 690.12, 2023 update).

Q7: What are typical grid compliance tests performed before shipment?

A: Essential tests include anti-islanding (per IEEE 1547), harmonic emissions (ANSIC82.77), EMC (EN61000-6-2/4), IP67 water ingress, and full functional burn-in at 85°C for 24 hours.

9. Delivery, Quality Assurance & Customer Commitment

Production Cycle: Secure quick turnaround (OEM batch ≤500pcs: 2 weeks; ≤3000pcs: ≤24 days).
Quality Commitment: 5-stage QMS (design, procurement, assembly, function, shipment); every ac micro inverter batch 100% factory-tested and serialized.
After-sale Support: Lifetime technical hotline, online ticketing, and 48h advanced replacement for warranty cases.
Certification Documentation: Digital delivery of all test reports (ISO, ANSI, VDE) at shipment.

References & Further Reading:

[1] GMI Insights, “Micro Inverter Market Size, Growth and Analysis”, gminsights.com
[2] IEEE Xplore, “Advancements in Photovoltaic Micro-Inverter Technology”, ieeexplore.ieee.org
[3] ScienceDirect, “Field Performance of Module-Level MPPT in Agriculture”, sciencedirect.com
[4] Solar PV Forum, “Panel-level Optimization Discussion”, solarpaneltalk.com
[5] Enphase, Hoymiles, APsystems data sheets, 2-in-1 Microinverter datasheet see product
