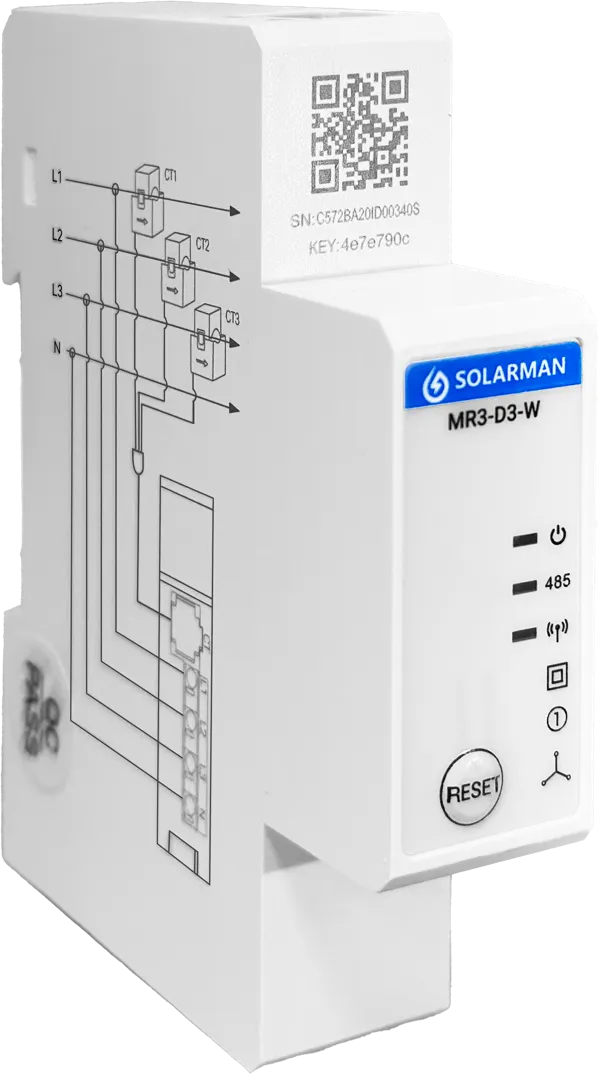

Smart Meter-W

MR3-D3-(Wifi)

Smart Meter is a power control device for microinverter system.
It can collect the current grid output power status.
At the same time, it is connected to the home network,
communicates with microinverters under the same network, and
controls the output power of the entire microinverter system.

DATASHEET

Products Monitoring & Accessory Smart Meter-W

Specs

Download Files ▼

Datasheet

Communication	MR3-D3-W
Wireless Type	Wi-Fi
Working Frequency	2.400 GHz ~ 2.484 GHz
Data Interval	< 200 ms
Rated Voltage	230 V / 400 V
AC Frequency	50 / 60 Hz
Power Range	0 ~ 999999.99 kWh
Accuracy Class	1.0
Consumption	≤ 3.5 W

*Only partial parameters are listed. For the complete specification list, please refer to the official datasheet.

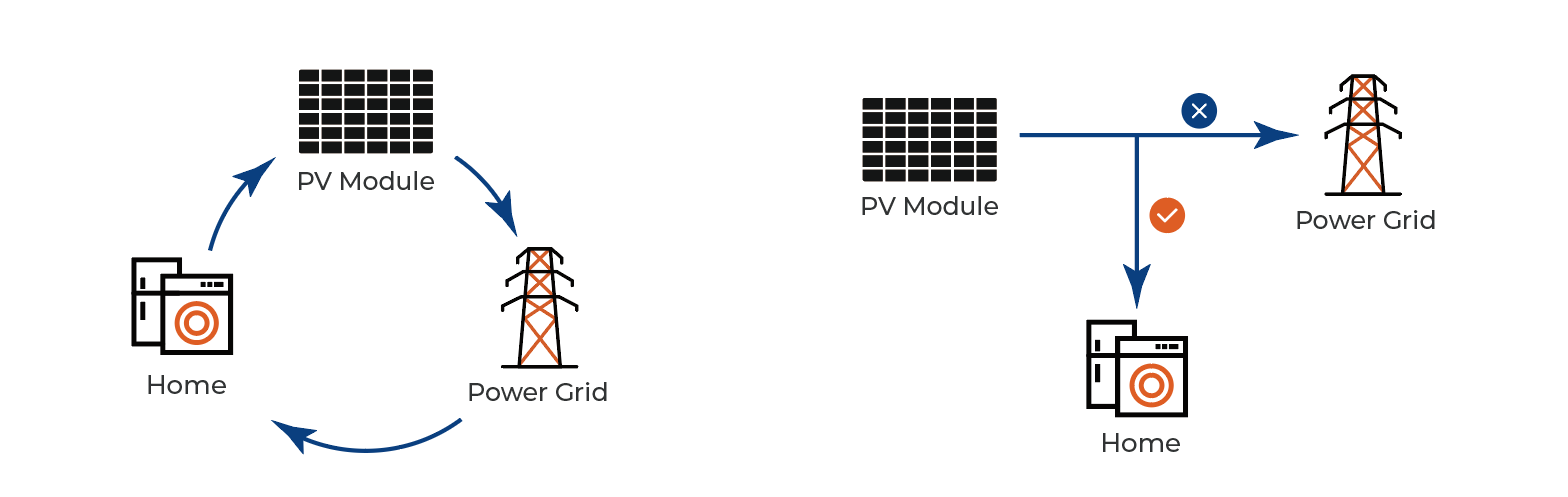

Diagram

Smart Meter-W

Consumption Calculation

Smart Meter will collect voltage, current, power, and other
data on the power grid side of the home, upload it to the
server, and display it on the APP and WEB.

At the same time, the monitoring platform will combine the
microinverter power and other data to calculate the
household load consumption data and display it on the APP
and WEB sides.

Zero-export Function

When the anti-reverse flow function is turned on, the
Smart Meter will send the collected power grid data to the
micro-reverse flow in real time through the local network.

The microinverter automatically adjusts the output power
to match the power consumed by the household load. This
achieves the purpose of not transmitting energy to the
public grid, which is the anti-backflow function.

Frequently Asked Questions

What is the main function of the TSUN Smart Meter?

A :

The TSUN Smart Meter collects real-time power data from the grid and communicates with microinverters to optimize energy use. It can also monitor energy production and consumption via an app.
How does the zero-export function work?

A :

The Smart Meter prevents energy backflow to the public grid by adjusting the output power of the microinverters, matching household load in real-time.
Is the TSUN Smart Meter easy to install?

A :

Yes, it connects wirelessly to your home network, making installation straightforward.
